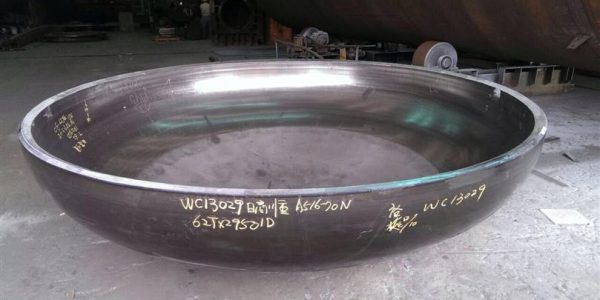

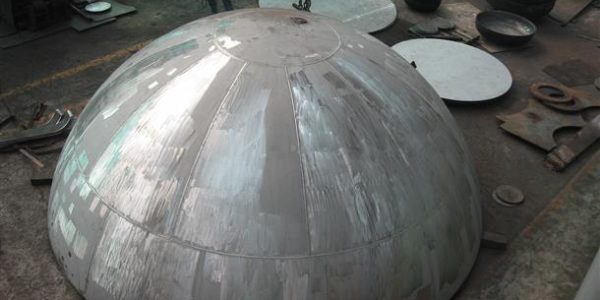

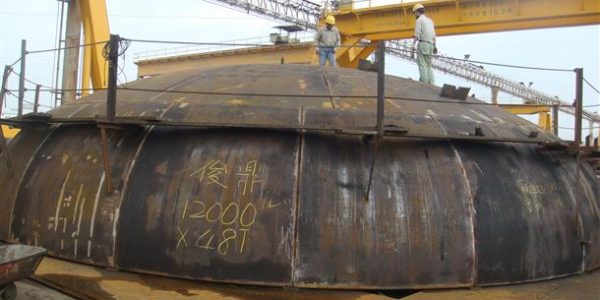

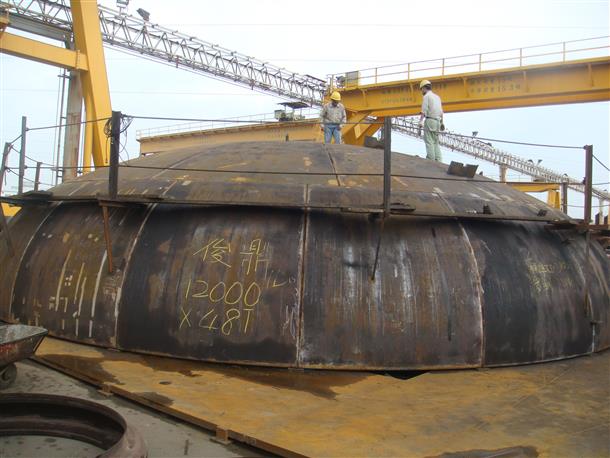

End Plate

Product Information: Cold work and hot work

1. Type:

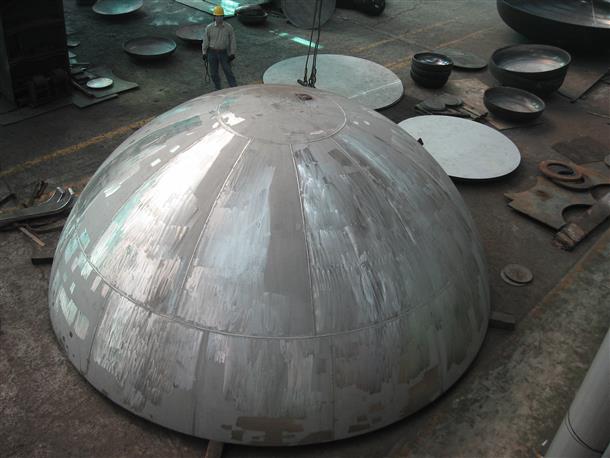

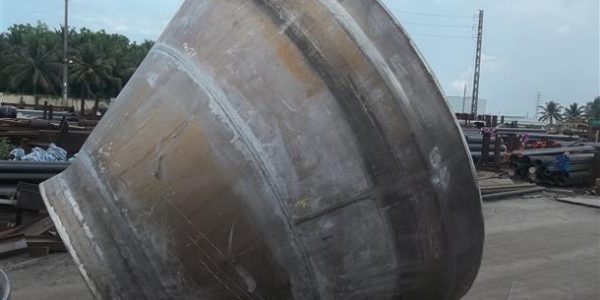

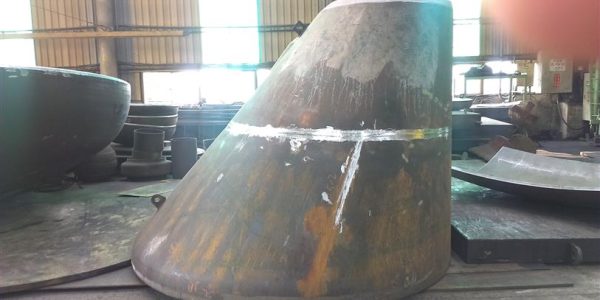

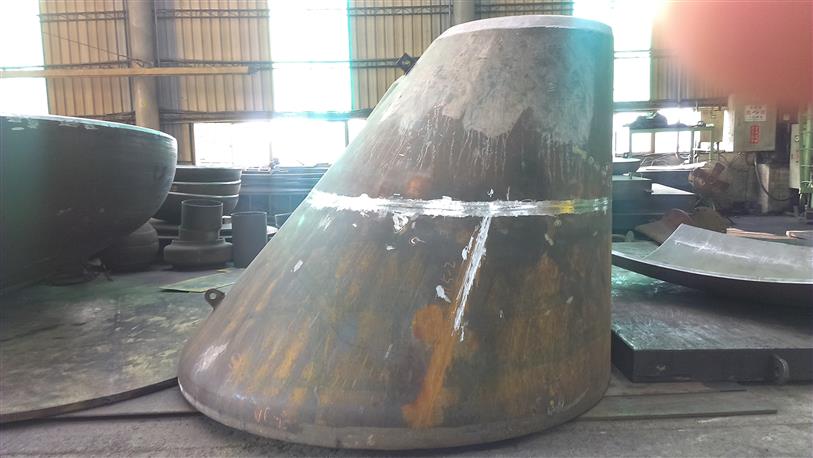

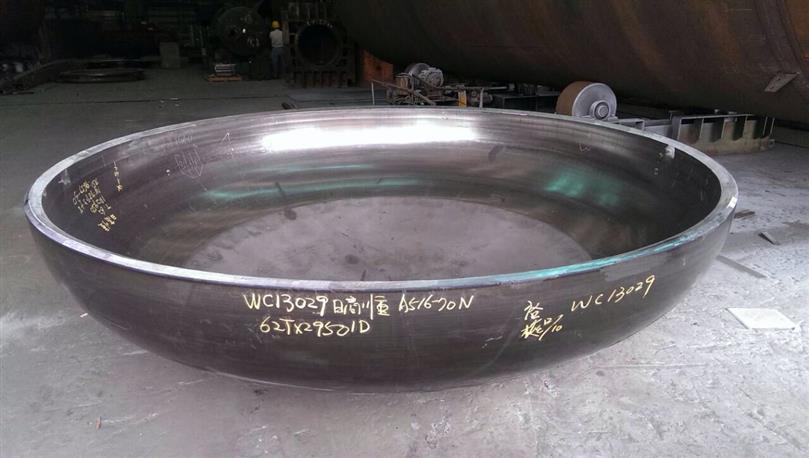

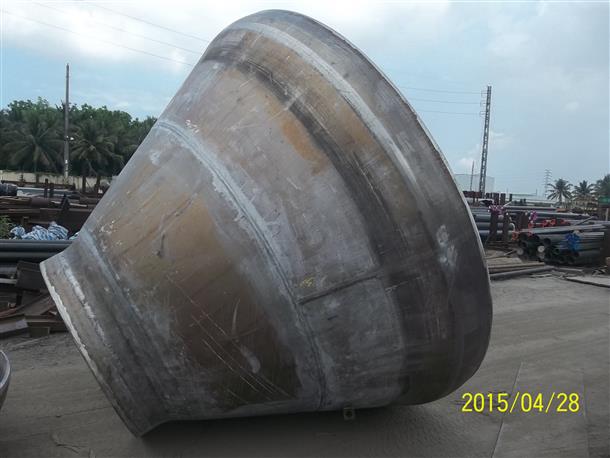

Flat Dished (FH)  、Dished (ED、SD)  、Hemi Spherical (HH) 、Awl Shaped (CH) and Various Special Shaped

2. Range:

a)Thickness = 3mmt ~ 90mmt
b) Diameter = ß320 ~ ß8700 MM (The diameter could be unlimited if the end plate is assembled by pieces.)
c) Material:carbon steel, alloy steel, stainless steel, clad steel, copper alloy, aluminum alloy

3.Capacity: 2500MT/Year

Contact Information

Ms. Cora Wang/Sales Engineer
cora@wanchi.com.tw
Tel +886 7 6163881 ext. 133
Fax +886 7 6162955

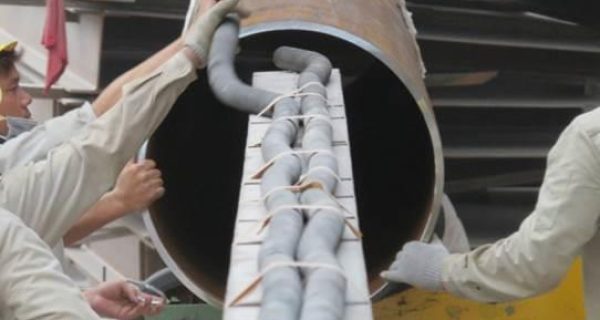

Heat Treatment

Product Information:
Heavy-oil heating with auto record by 8 points indicator

1. Type:

a) Stress relief
    b) Nnealing
    c) Normalizing

2. Range:

Width:6M, Height:5M, Length:14.5M, Weight: 75MT/time

3.Capacity:

 300 furnace times/year

Contact Information

Ms. Cora Wang/Sales Engineer
cora@wanchi.com.tw
Tel +886 7 6163881 ext. 133
Fax +886 7 6162955

Contact Information

Ms. Cora Wang/Sales Engineer
cora@wanchi.com.tw
Tel +886 7 6163881 ext. 133
Fax +886 7 6162955

Pipe Bending

Product Information:
Cooling Method: According to the material, we choose the cooling method, such as air cooling, water cooling, mist cooling

1. Type:

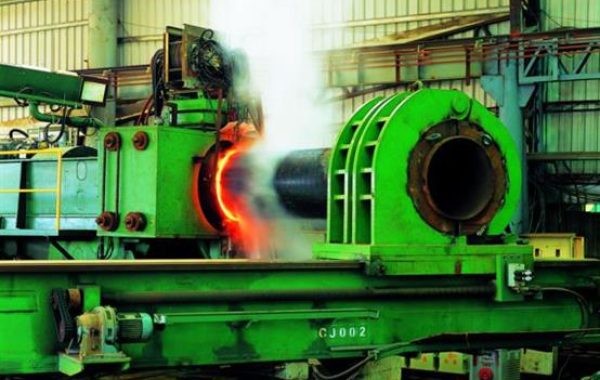

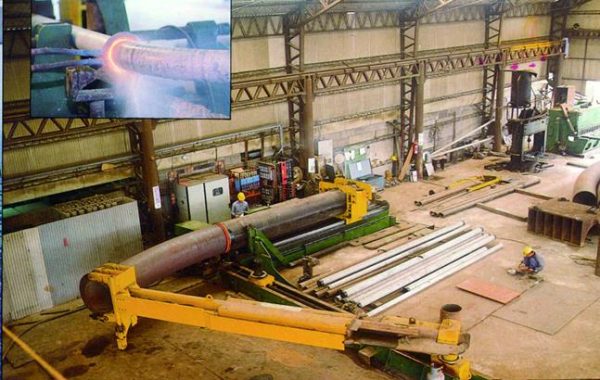

a) Heat bending by high frequency inducing bending machine

b)Cold bending by inner pressing

2. Range:

a) Hot bending : Thickness=2mmt~70mmt, Dia:ß2” ~ß48”, Radius=3RD~30RD

b) Cold bending: Thickness=3mmt~16mmt, Dia: ß1/2” ~ß18”, Radius= 3RD ~ ∞

Large Diameter Pipe

1. Type:

The Wan Chi’s pipe mill is one of Taiwan’s finest pipe mills with a annual capacity of 10,000 Tons and the only one with Real-Time RT equipment.
Wan Chi is API-certified pipe manufacutrer and receive world wide acceptance and approval from different industries area.

  •  The mill has the capability to produce high strength line pipe grades up to X-70
  •  Latest testing equipments ensure adherence to international stan-dards.
  •  External and internal coating facilities with a capacity of up to 100,000 square meter annually
  •  On line Shot blasted and external PE coating facility
  •  Easy access to port and road ensures timely delivery of orders across the world

In addition to the delivery of complete pipe mills, Wan Chi offers a wide range of supplementary services for successful completion of your project and the long-term operation of your production plant.
Working closely with our customers, we are developing tailored solutions for individual requirements. The degree of automation, production output and the quality standard which needs to be achieved are the key factors defining the final structure and workflow of the individual production steps.

Product Information:

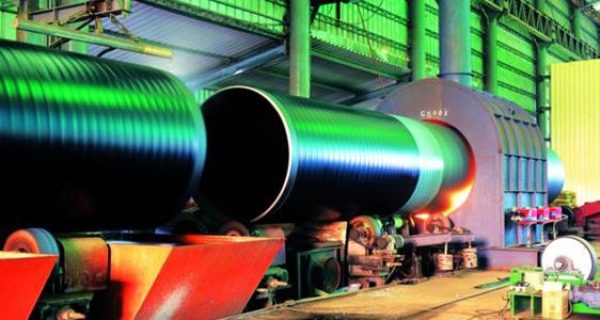

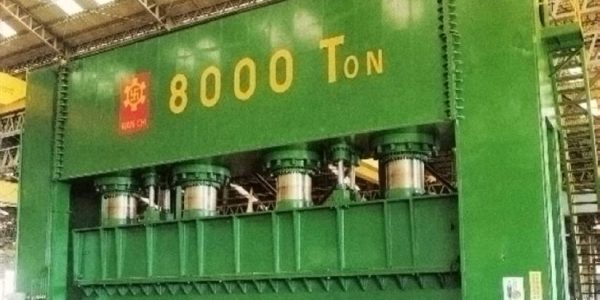

We use pressing & rolling as forming methods. All welding seams are made by submerged arc welding.
1. Type: Submerged Arc Welded Pipe
2. Range: Thickness = 9mmt ~60mmt Diameter = 500 ~ 4000MM Length = 6M ~ 12M (one seam to be 20”~48”) Material:carbon steel, low alloy steel, high alloy steel, stainless steel
3. Capacity: 100,000 tons/year

Contact Information

Ms. Cora Wang/Sales Engineer
cora@wanchi.com.tw
Tel +886 7 6163881 ext. 133
Fax +886 7 6162955

Download Files

Contact Information

Ms. Cora Wang/Sales Engineer
cora@wanchi.com.tw
Tel +886 7 6163881 ext. 133
Fax +886 7 6162955

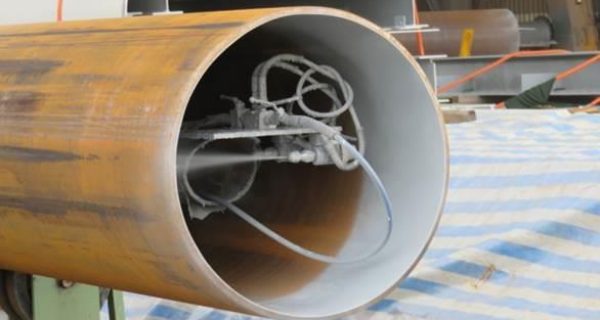

Painting& Coating

Product Information:
Contact us for more product information

1. Type:

a) Normal Painting and Coal Tar Coating

  • Painting:Any kind of steel Coal tar coating : sea water intake piping, underground piping
  • Diameter = 8” ~ 100” Length = 12ML

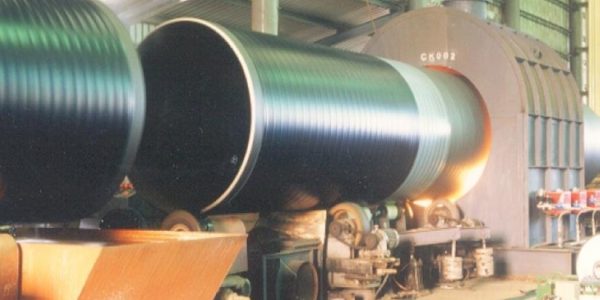

2. PE Coating:

Underground transferring oil pipes & water pipes Diameter = 16” ~ 64” Length = 6ML ~ 12ML
